SPECIFICATIONS

  RC F
Suspension

Double wisbone type(Front)/Multi-link type(Rear), Coil sprint, gas-filled shock absorbers, stabilizer bar

Steering system Rack and Pinion. EPS ( Electric Power Steering)
Bakes

Front : 380mm ventilated discs

Rear : 345mm ventilated discs

Minimum Turning Radius(Tyres) 5.4m
Fuel Tank Capacity 66 Liters
Tyres Front : 255/35ZR19
Rear : 275/35ZR19
  RC F
Type 5.0 Liter V8 Four Cam 32-value(2UR-GSE, unleaded)
Piston displacement 4969cc
Max. Output 471HP/7100rpm ( EEC net)
Max Torque 54.0kg-m/4800-5600rpm (EEC net)
Fuel System D-4S ( Direct-injection 4-Stroke Superior-version)

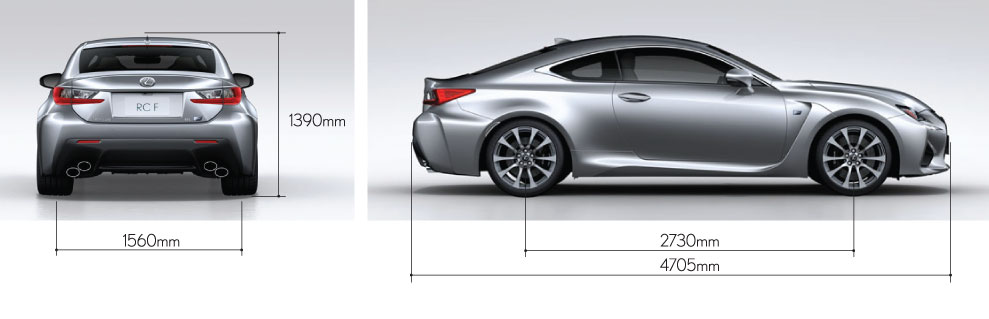

  RC F
Overall length 4705mm
Overall width 1845mm
Overall height 1390mm
Wheelbase 2730mm
Tread

Front : 1555mm

Rear : 1560mm

Curb Weight 1800kg
Gross vehicle weight 2250kg
  • CHASSIS
    • RC F
      Suspension Double wisbone type(Front)/Multi-link type(Rear), Coil sprint, gas-filled shock absorbers, stabilizer bar
      Steering system Rack and Pinion. EPS ( Electric Power Steering)
      Bakes Front : 380mm ventilated discs Rear : 345mm ventilated discs
      Minimum Turning Radius(Tyres) 5.4m
      Fuel Tank Capacity 66 Liters
      Tyres Front : 255/35ZR19 Rear : 275/35ZR19
  • ENGINE
    • RC F
      Type 5.0 Liter V8 Four Cam 32-value(2UR-GSE, unleaded)
      Piston displacement 4969cc
      Max. Output 471HP/7100rpm ( EEC net)
      Max Torque 54.0kg-m/4800-5600rpm (EEC net)
      Fuel System D-4S ( Direct-injection 4-Stroke Superior-version)
  • DIMENSIONS
    • RC F
      Overall length 4705mm
      Overall width 1845mm
      Overall height 1390mm
      Wheelbase 2730mm
      Tread Front : 1555mm Rear : 1560mm
      Curb Weight 1800kg
      Gross vehicle weight 2250kg
